Product Overview

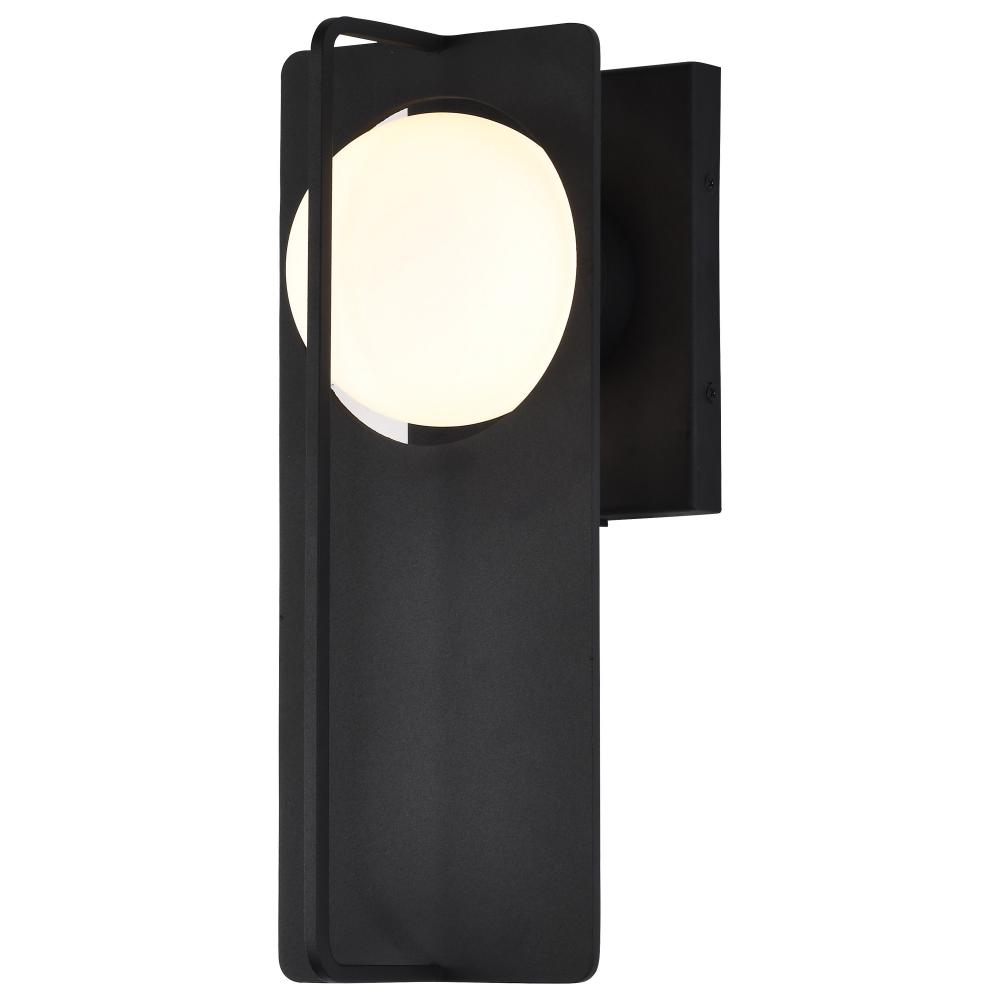

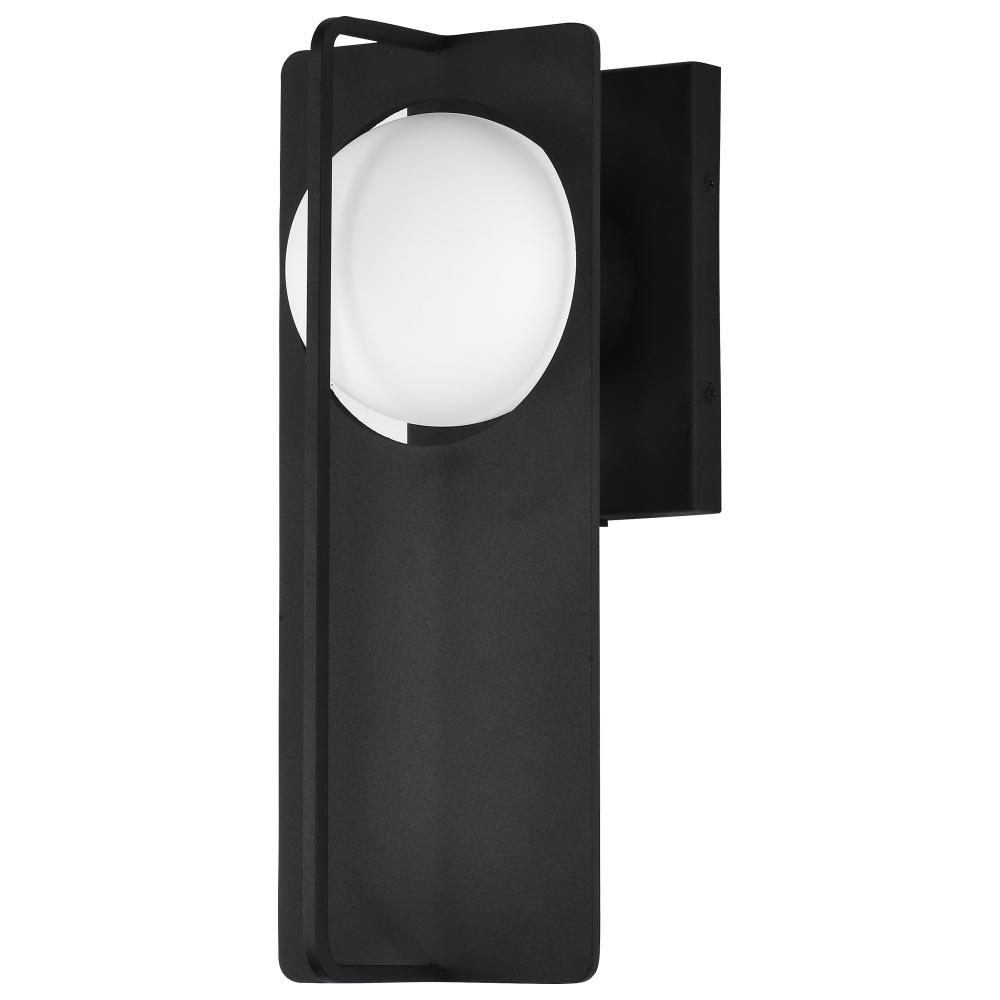

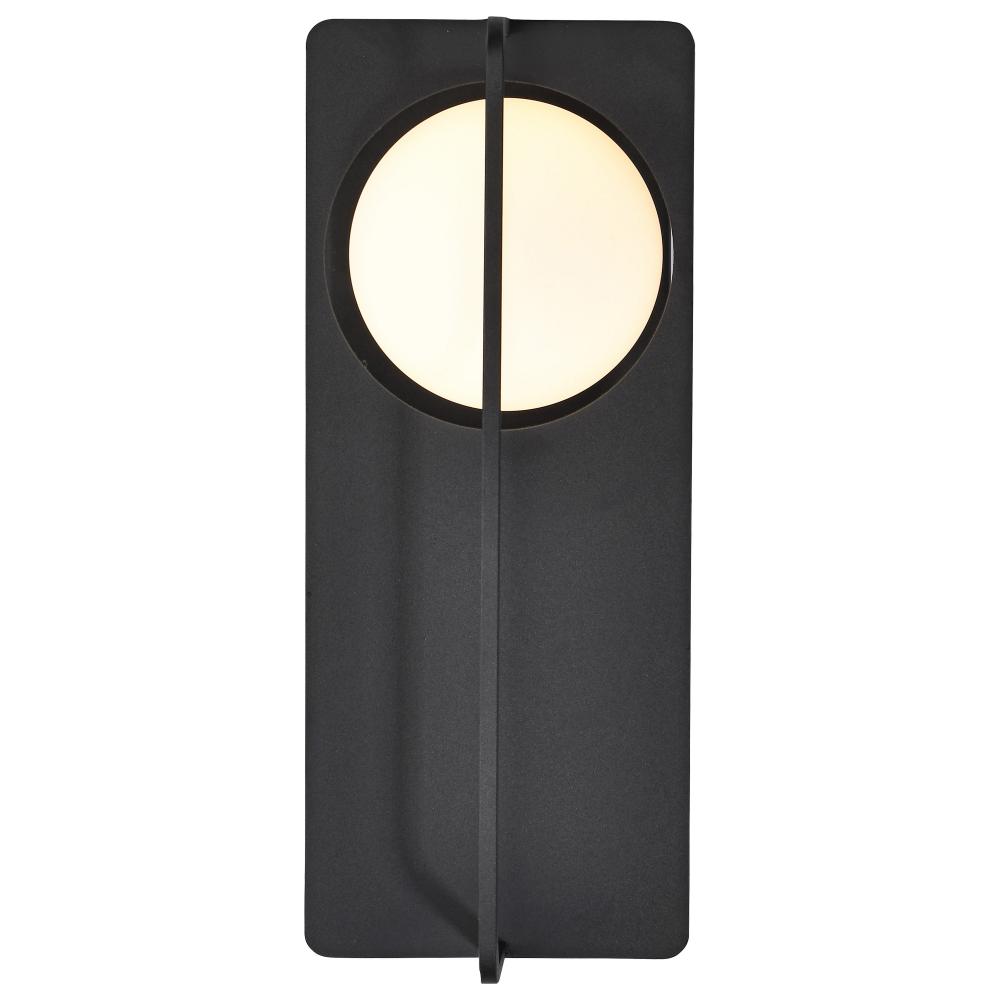

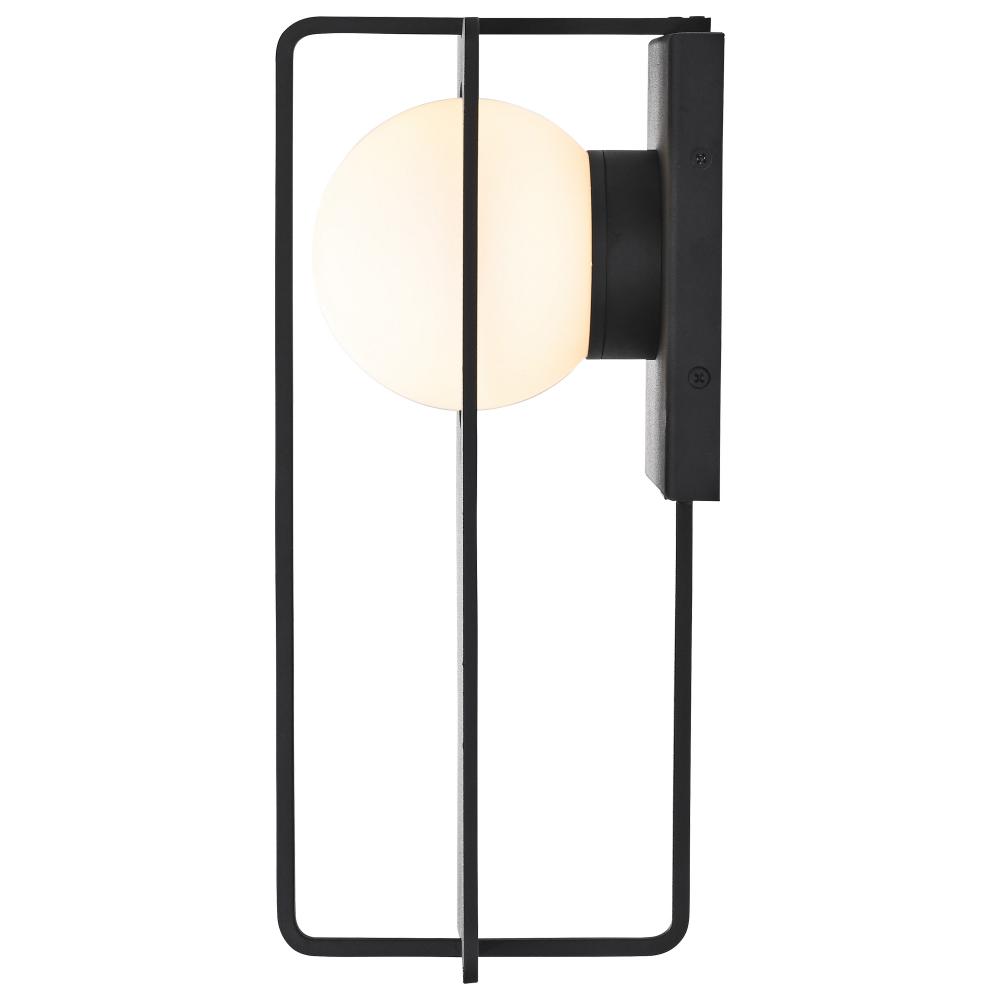

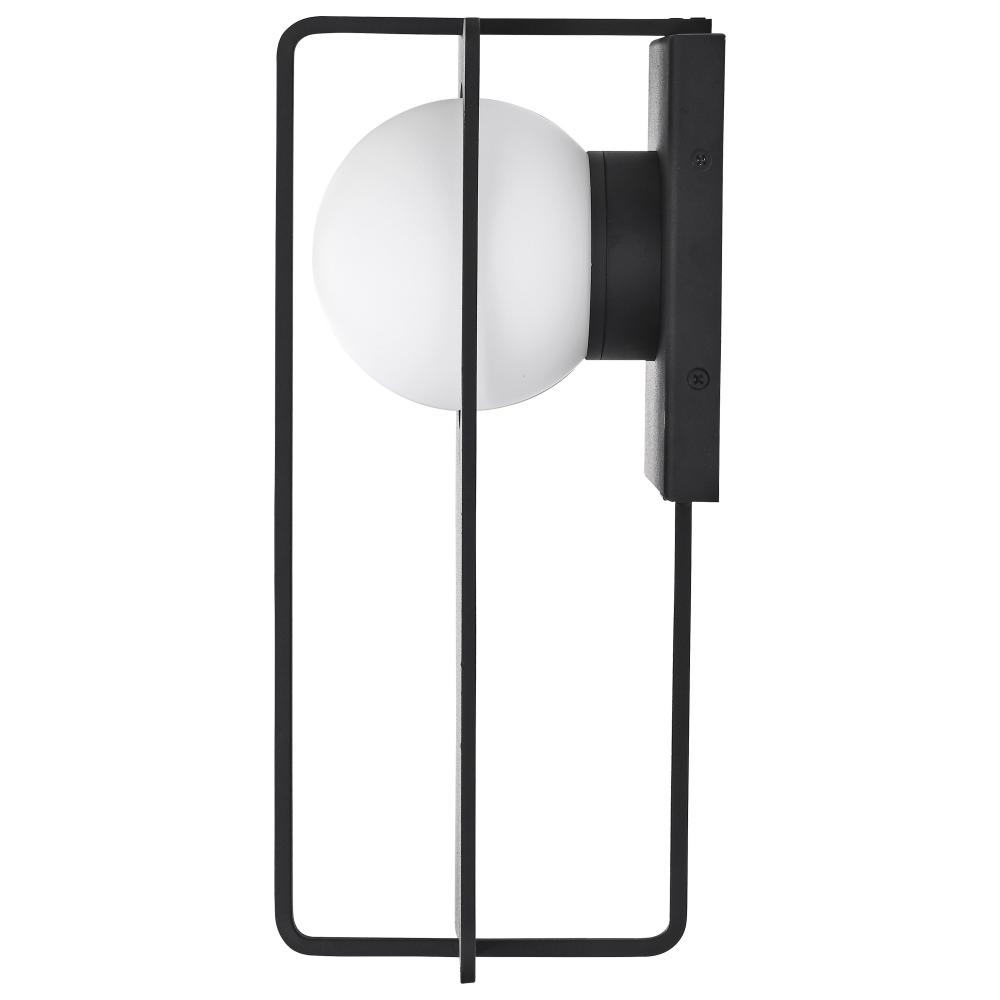

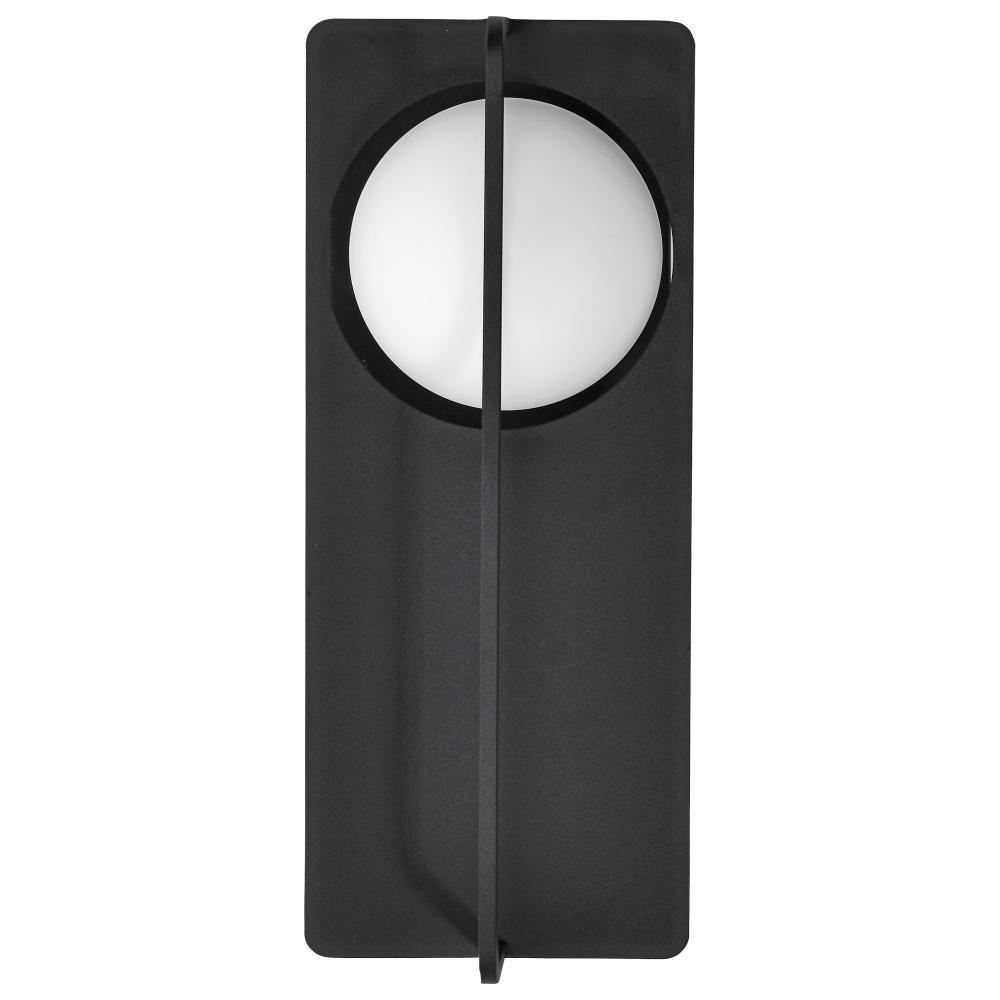

Portal; 6W LED; Medium Wall Lantern; Matte Black with White Opal Glass

Standard Information

Category:

Exterior

Subcategory:

Wall Lanterns

Finish:

Black

Style:

Contemporary

Traditional

Option:

LED

Prop 65

Subfinish:

Matte Black

Refinement Options

Category:

Outdoor

Sub Category:

Wall

Style:

Contemporary

Collection:

Portal

Avg Rated Hours:

30000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White

Dimmable:

Yes-Dimmable

Each Height:

16.54

Each Length:

9.25

Each Width:

8.07

Lumens:

550L

Tariff Code:

9405.11.6010

Warranty:

3 Year Limited - Fixtures

Amps:

0.050A

ANSI Base:

Integrated

BAA Compliant:

No

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Each Cube:

0.7145

Each Quantity:

1

Efficacy:

91.67 LPW

FCC Compliant:

No

Feature 1:

Fully integrated 6-watt LED

Feature 2:

Fixture measures 5.75 inch width x 14 inch height x 6.5 inch extends

Feature 3:

Rated for wet locations with full exposure

Feature 4:

Finished in matte black with white opal glass

Feature 5:

Mounting hardware and installation instructions included

Feature 6:

Limited three year fixture warranty

Finish Family:

Black

Has Emergency Battery:

No

Incandescent Equivalent:

60W

Indoor Outdoor:

Outdoor

IP Rating:

IP44

JA8 Compliant:

No

Long Description:

The Portal 62-1609 medium outdoor wall lantern features LED technology and a contemporary, modern design. A single bar spans the length of the fixture with a broad, rectangular plate as the backdrop. A single glass orb appears to float within the fixture a

Material:

Aluminum / Glass

Mounting Extends:

0.75

Mounting Height:

6.75

Mounting Procedure:

Wall

Mounting Width:

5.5

NSF Approved:

No

Operating Temp:

-20C (-4F) to +40C (+104F)

Pack Type:

Brown Box

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

The Portal medium outdoor wall lantern features LED technology and a contemporary, modern design. A single bar spans the length of the fixture with a broad, rectangular plate as the backdrop. A single glass orb appears to float within the fixture and provi

Safety Listing:

cETLus

SDS class:

LED_Fixture

Short Description:

PORTAL 6W LED MED WALL LANTERN

Sloped Ceiling Compatible:

No

Temperature (CCT):

3000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Up Down Installation:

Up

Wattage Selectable:

No

Weight Lb.:

3.1
