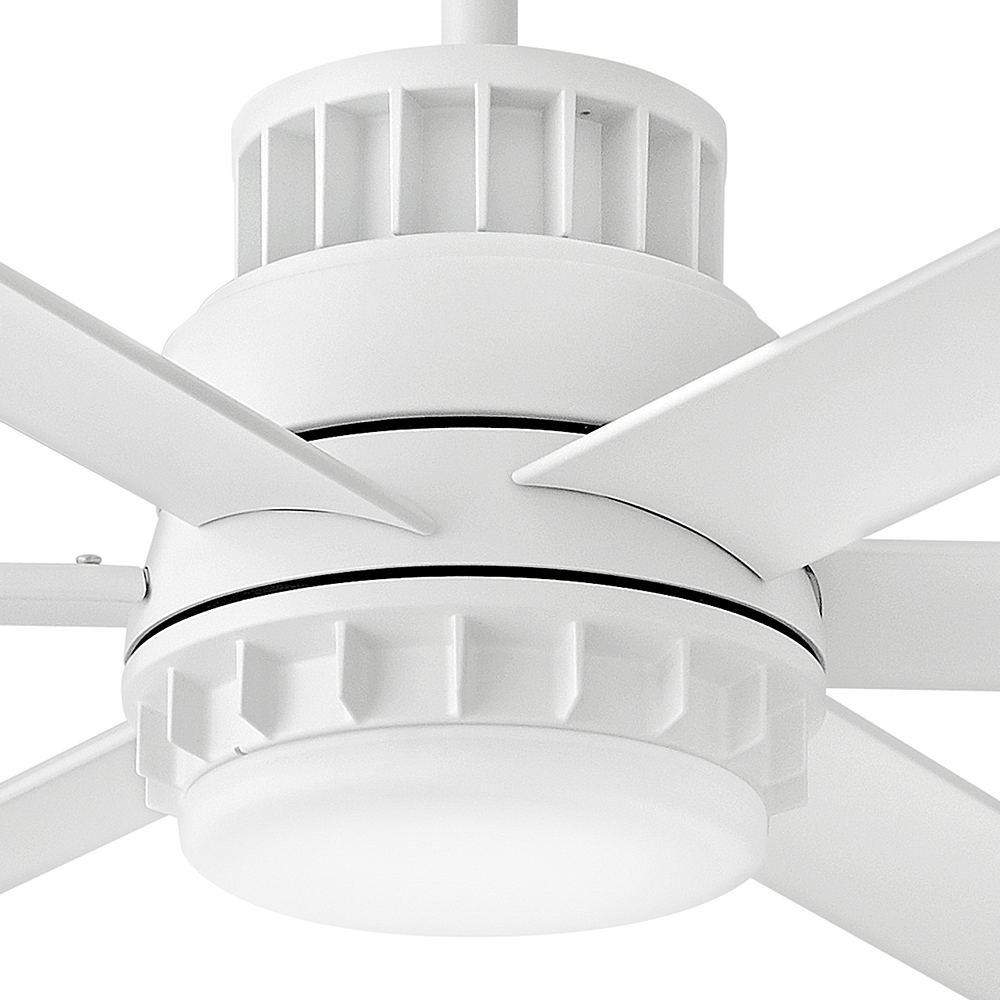

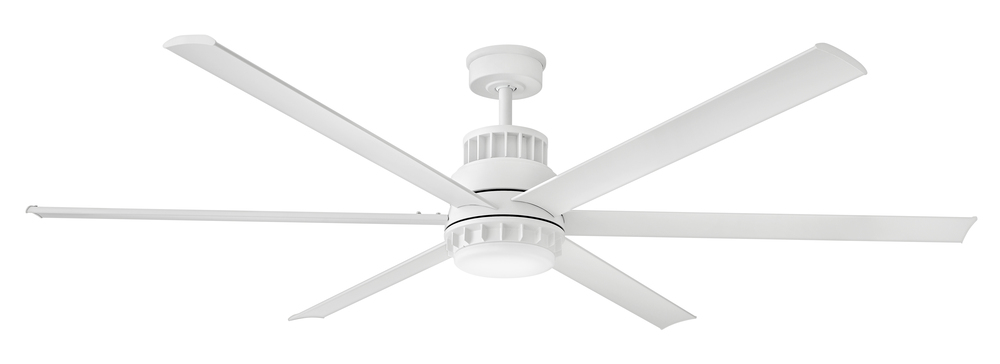

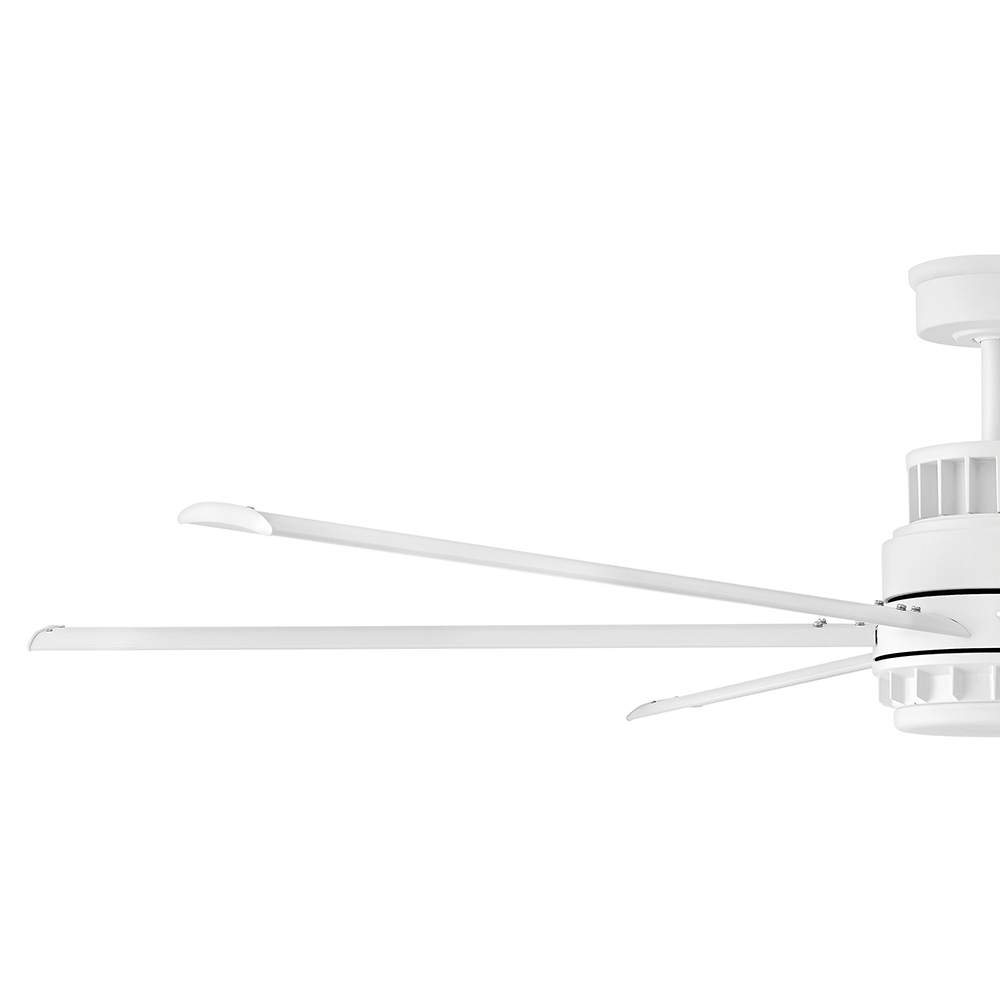

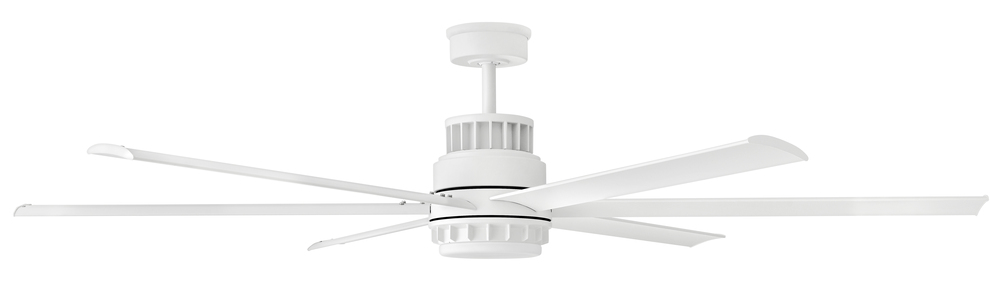

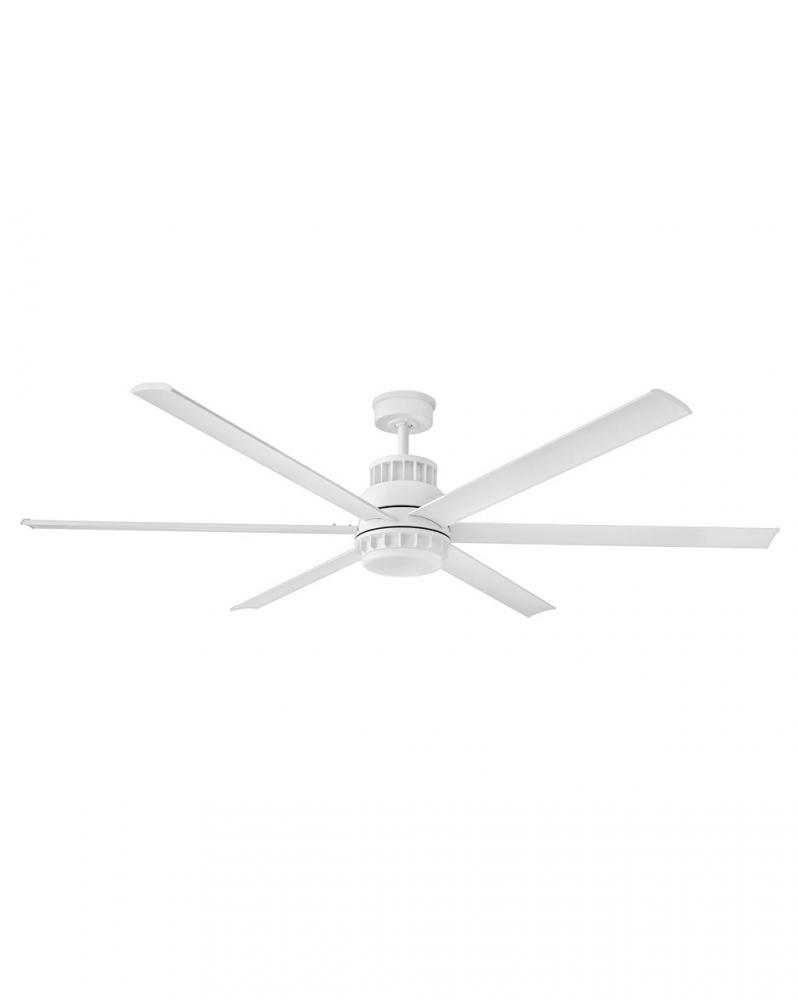

Draftsman 72" LED Smart Fan : E99QF

Draftsman's updated transitional form ties perfectly into any space while delivering superior performance. Matte White and Matte Black finish options enhance Draftsman's industrial-inspired design to complement indoor and outdoor spaces alike. With integrated LED and DC motor technology, Draftsman delivers excellent energy efficiency. For lower ceilings, a flush mount kit is an accessory option for easy customization. Operated by the HIRO control or WiFi-compatible with the Hinkley app.

Standard Information

Category:

Exterior

Fans

Subcategory:

Exterior Fans

Ceiling Fans with Light

Finish:

White

Style:

Transitional

Industrial

Option:

Wet Rated

Prop 65

Voltage:

100-120

Lumens:

1101-1600

Number of Blades:

6 Blades

Kelvin:

2501-3000

Location Rating:

Wet Rated

Refinement Options

Category:

Fan

Finish:

Matte White

Style:

Industrial

Family:

Draftsman

Glass:

White Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow Efficiency:

9902

Amperage:

0.52

Blade Finish:

Matte White

Blade Pitch:

Blade Span:

Blades Included:

Yes

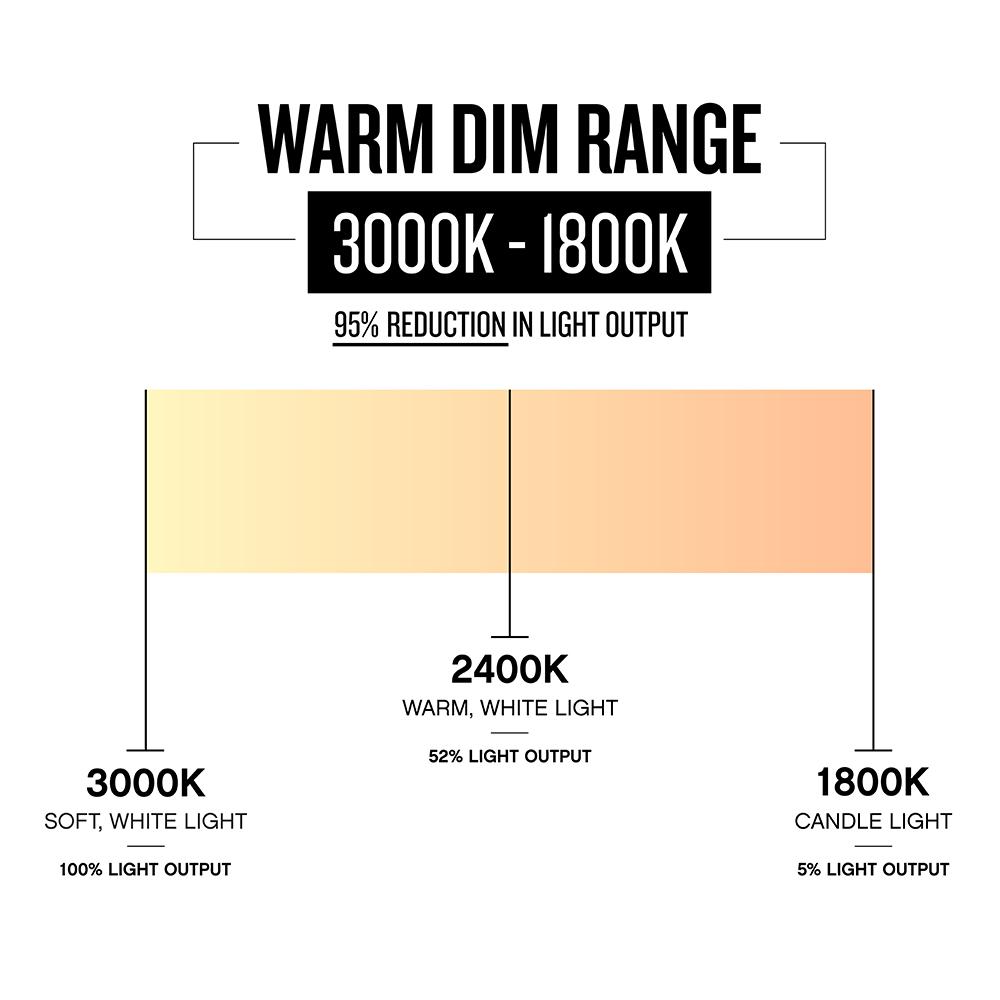

Bulb Dimmable:

Yes - CL Type Dimmer (SSL7A)

Bulb Hours:

50000

Bulb Type:

LED

Canopy:

6.5 Dia. x 2.5 D

Introduction Date:

01/01/2023

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1320

Material:

Steel

Motor Size:

DC 155 x 22 (Ferrite)

Motor Type:

Ship Carton Height:

Ship Carton Length:

Ship Carton Width:

Ship Weight:

Vendor Ship Method:

Parcel

Weight:

Airflow Avg:

7348

AMPS Avg:

0.31

Avg Energy Use:

Blade Material:

Aluminum

Blade Options Available:

Blade To Ceiling Height:

12.75

Blades Reversible:

Bulb CRI:

Bulb Included:

Yes

Control Type:

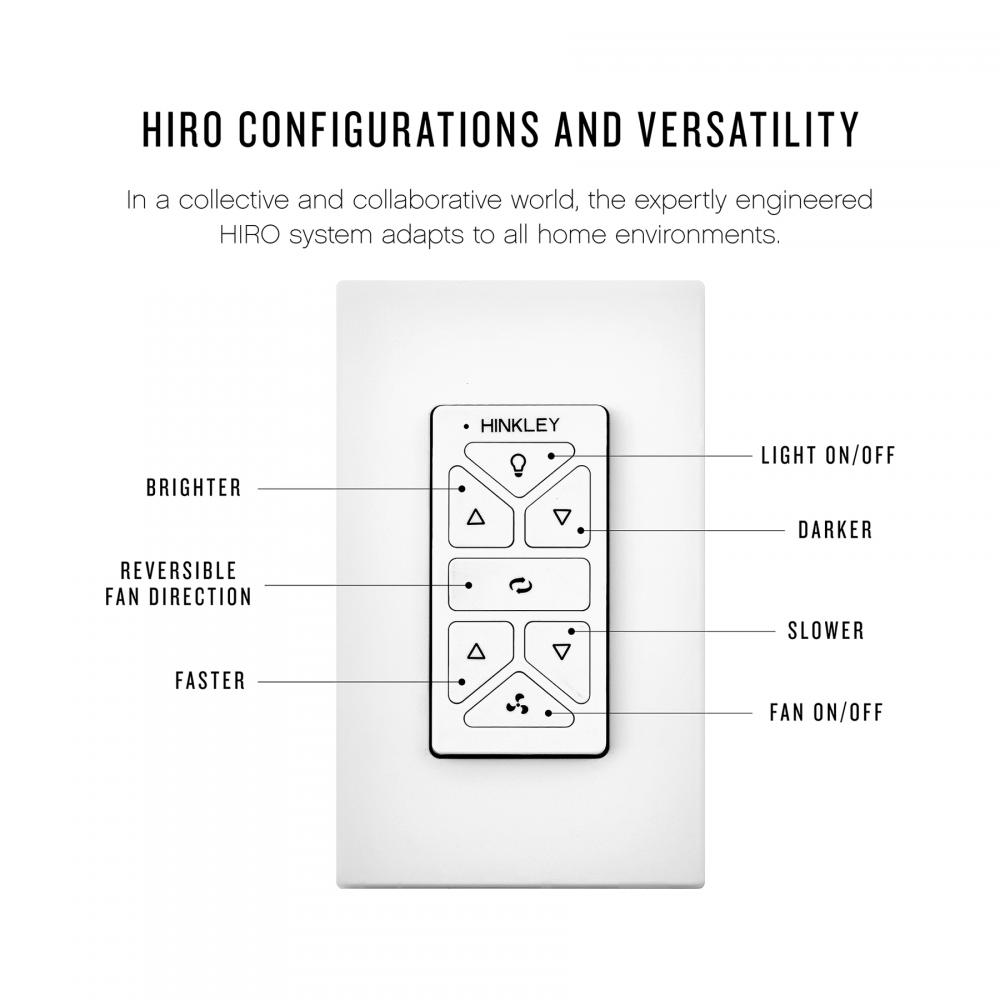

HIRO Control - 6 Speed Reversing

Country of Origin:

China

Dual Mount:

Efficiency Avg:

305

Efficiency High:

294

Energy Cost Avg:

Energy Cost High:

Energy Use High:

33.7

Fan Control:

Yes

Flush Mount Fan:

Incandescent Equivalency:

100 W

Light Kit Adaptable:

Light Source:

Integrated LED

Location Rating:

Wet Rated

Max Wattage:

16 W

Motor Fan Speed:

Number of Blades:

Operating Frequency:

Prop 65 Description:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

RPMS High:

112

Safety Rating:

UL Approved, C-US Approved

Single Power Switch:

Slope:

Sloped Ceiling Adaptable:

Yes

Stand By Power:

0.2

Style-2:

Transitional

Title 24:

WIFI Control Included:

Yes

WIFI Control Optional:

Blades, controls, switches, capacitors and hardware carry a 1-year warranty

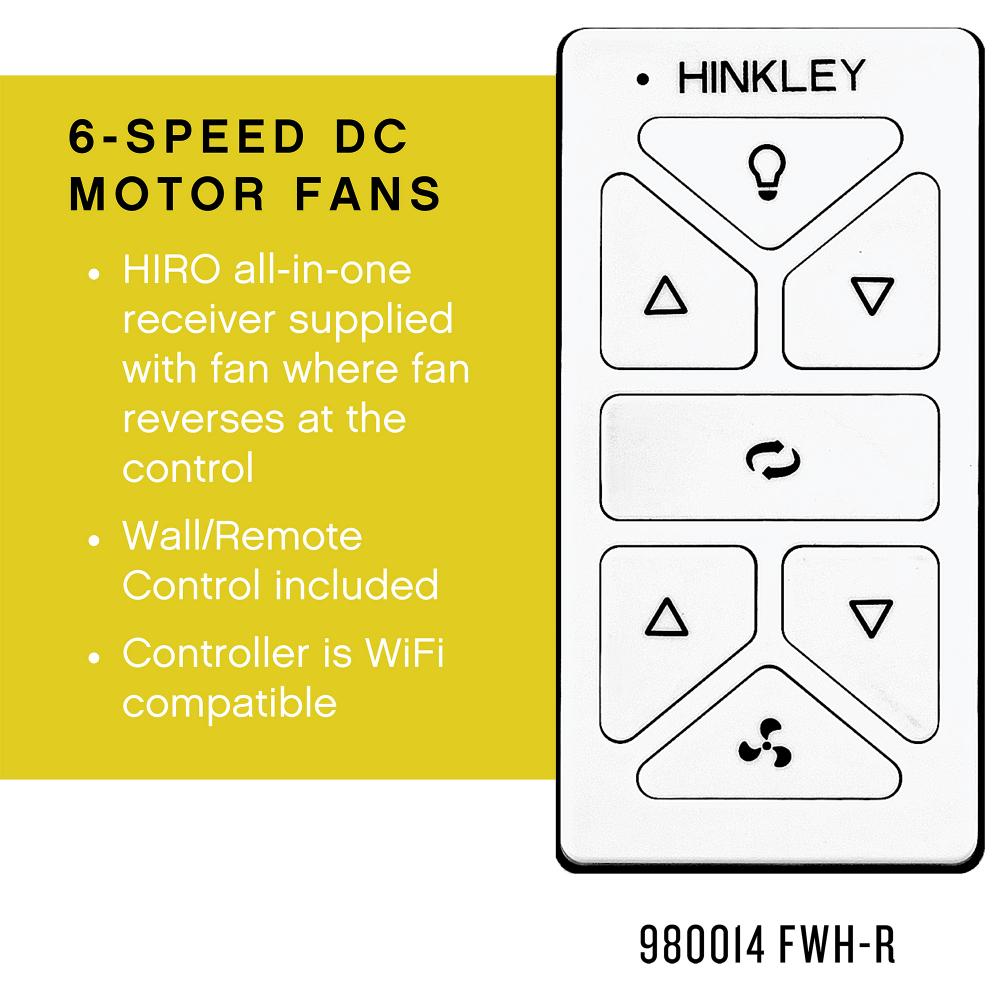

Fan Control included, HIRO Control - 6 Speed Reversing

Fans should be installed at a minimum of 7 feet from the floor

For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.

LED components carry a 5-year limited warranty

Merging the best of traditional and modern elements with a sophisticated and streamlined look

Motor carries a lifetime warranty

Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards

This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.

This item may be hung on a sloped ceiling

This product uses recyclable or limited packaging materials to help reduce waste.

WiFi compatible with included fan control
