Product Overview

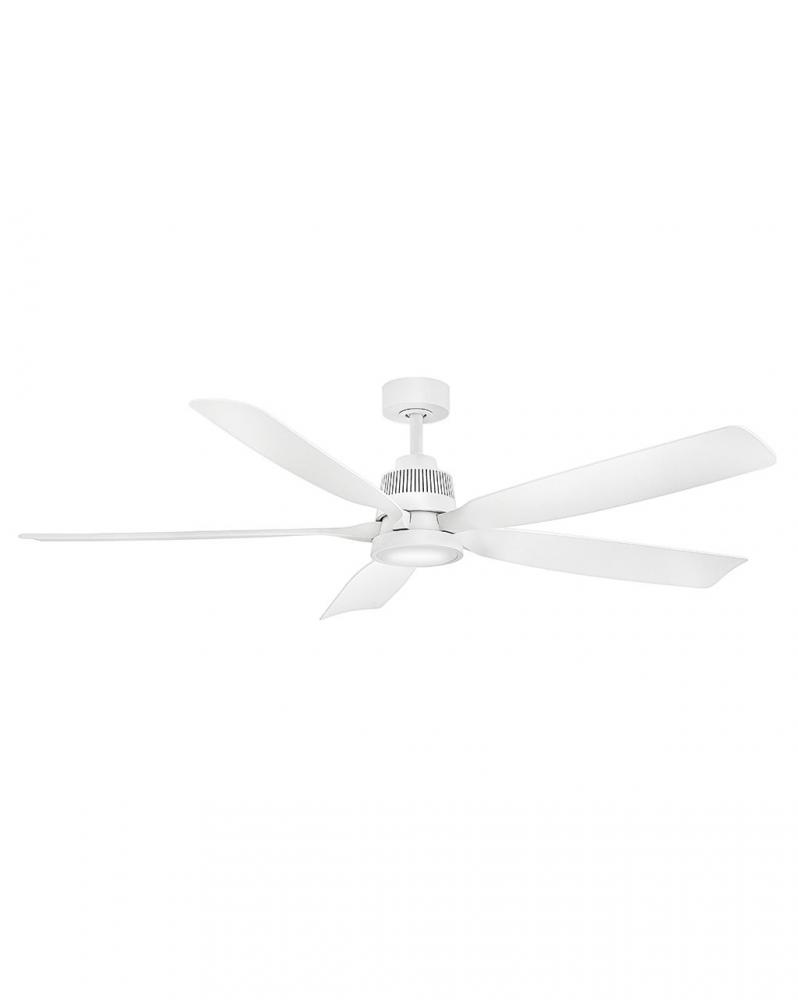

Classic with a sophisticated tapered silhouette, Bodin’s uniquely curved blades add a cool touch and refreshing breezes to any setting. A versatile, damp-rated design complements both interiors and covered outdoor areas. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

White

Style:

Transitional

Option:

Damp Rated

Refinement Options

Category:

Fan

Finish:

Matte White

Style:

Transitional

Family:

Bodin

Glass:

White Polycarbonate

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow Efficiency:

7749

Amperage:

0.5

Blade Finish:

Matte White

Blade Pitch:

14

Blade Span:

64

Blades Included:

Yes

Bulb Dimmable:

Yes - CL Type Dimmer (SSL7A)

Bulb Hours:

50000

Bulb Type:

LED

Canopy:

6 Dia. x 2.25 D

Introduction Date:

06/01/2024

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1320

Material:

Steel

Motor Size:

DC125

Motor Type:

DC

Ship Carton Height:

10

Ship Carton Length:

35

Ship Carton Width:

17

Ship Weight:

23.5

Vendor Ship Method:

Parcel

Weight:

17

Airflow Avg:

5665

AMPS Avg:

0.3

Avg Energy Use:

23

Blade Material:

Composite

Blade Options Available:

No

Blade To Ceiling Height:

10

Blades Reversible:

No

Bulb CRI:

90

Bulb Included:

Yes

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

Taiwan

Dual Mount:

No

Efficiency Avg:

244

Efficiency High:

230

Energy Cost Avg:

7

Energy Cost High:

10

Energy Use High:

34

Fan Control:

Yes

Flush Mount Fan:

No

Incandescent Equivalency:

100 W

Light Kit Adaptable:

No

Light Source:

Integrated LED

Location Rating:

Damp Rated

Max Wattage:

16 W

Motor Fan Speed:

6

Number of Blades:

5

Operating Frequency:

60

Prop 65 Description:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

85

RPMS High:

118

Safety Rating:

ETL Approved, C-US Approved

Single Power Switch:

No

Slope:

20

Sloped Ceiling Adaptable:

Yes

Title 24:

No

WIFI Control Included:

Yes

WIFI Control Optional:

No

Blades, controls, switches, capacitors and hardware carry a 1-year warranty

Fan Control included, HIRO Control - 6 Speed Reversing

Fans should be installed at a minimum of 7 feet from the floor

For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.

LED components carry a 5-year limited warranty

Merging the best of traditional and modern elements with a sophisticated and streamlined look

Motor carries a lifetime warranty

Powered by a highly efficient and quiet DC motor

Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.

This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.

This item includes a light kit cover

This item may be hung on a sloped ceiling

This product uses recyclable or limited packaging materials to help reduce waste.

WiFi compatible with included fan control
