Product Overview

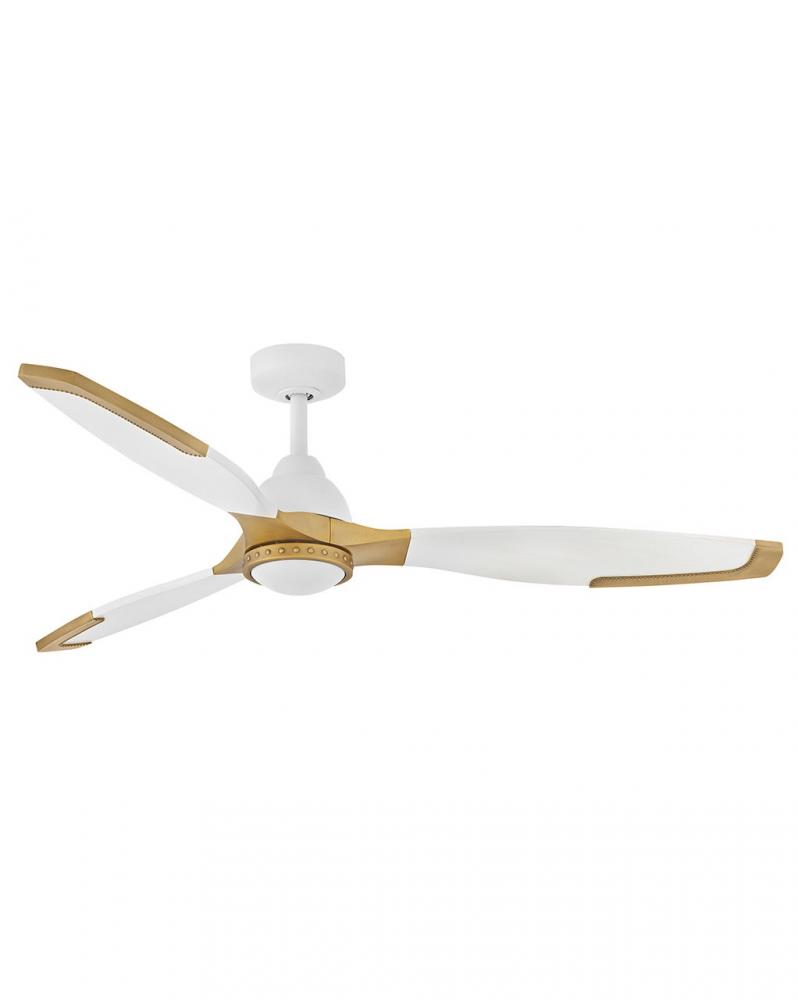

Accented by unique metal trim along the blades and central light, Aileron’s modern design brings added interest to your ceiling and a cool breeze to the surrounding space. Its versatile, damp-rated design is perfect for both interior and outdoor settings. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

White

Style:

Industrial

Option:

Damp Rated

Refinement Options

Category:

Fan

Finish:

Matte White

Style:

Industrial

Family:

Aileron

Glass:

White Polycarbonate

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow Efficiency:

5839

Amperage:

0.52

Blade Finish:

Matte White

Blade Pitch:

14

Blade Span:

60

Blades Included:

Yes

Bulb Dimmable:

Yes - CL Type Dimmer (SSL7A)

Bulb Hours:

50000

Bulb Type:

LED

Canopy:

6 Dia. x 2.25 D

Introduction Date:

06/01/2024

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1320

Material:

Steel

Motor Size:

DCS-15NS

Motor Type:

DC

Ship Carton Height:

8.25

Ship Carton Length:

28.75

Ship Carton Width:

13.75

Ship Weight:

28.6

Vendor Ship Method:

Parcel

Weight:

26.4

Accent Finish:

Heritage Brass

Airflow Avg:

4003

AMPS Avg:

0.06

Avg Energy Use:

25

Blade Material:

Wood

Blade Options Available:

No

Blade To Ceiling Height:

12

Blades Reversible:

No

Bulb CRI:

90

Bulb Included:

Yes

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

China

Dual Mount:

No

Efficiency Avg:

163

Efficiency High:

157

Energy Cost Avg:

7

Energy Cost High:

10

Energy Use High:

37

Fan Control:

Yes

Flush Mount Fan:

No

Incandescent Equivalency:

100 W

Light Kit Adaptable:

No

Light Source:

Integrated LED

Location Rating:

Damp Rated

Max Wattage:

16 W

Motor Fan Speed:

6

Number of Blades:

3

Operating Frequency:

60

Prop 65 Description:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

49

RPMS High:

144

Safety Rating:

UL Approved, C-US Approved

Single Power Switch:

No

Slope:

20

Sloped Ceiling Adaptable:

Yes

Title 24:

No

WIFI Control Included:

Yes

WIFI Control Optional:

No

Angular lines, a bold finish, simple shape and sturdy details merge for a robust but pared down industrial design

Blades, controls, switches, capacitors and hardware carry a 1-year warranty

Fan Control included, HIRO Control - 6 Speed Reversing

Fans should be installed at a minimum of 7 feet from the floor

For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.

LED components carry a 5-year limited warranty

Motor carries a lifetime warranty

Powered by a highly efficient and quiet DC motor

Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.

This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.

This item includes a light kit cover

This item may be hung on a sloped ceiling

This product uses recyclable or limited packaging materials to help reduce waste.

WiFi compatible with included fan control
