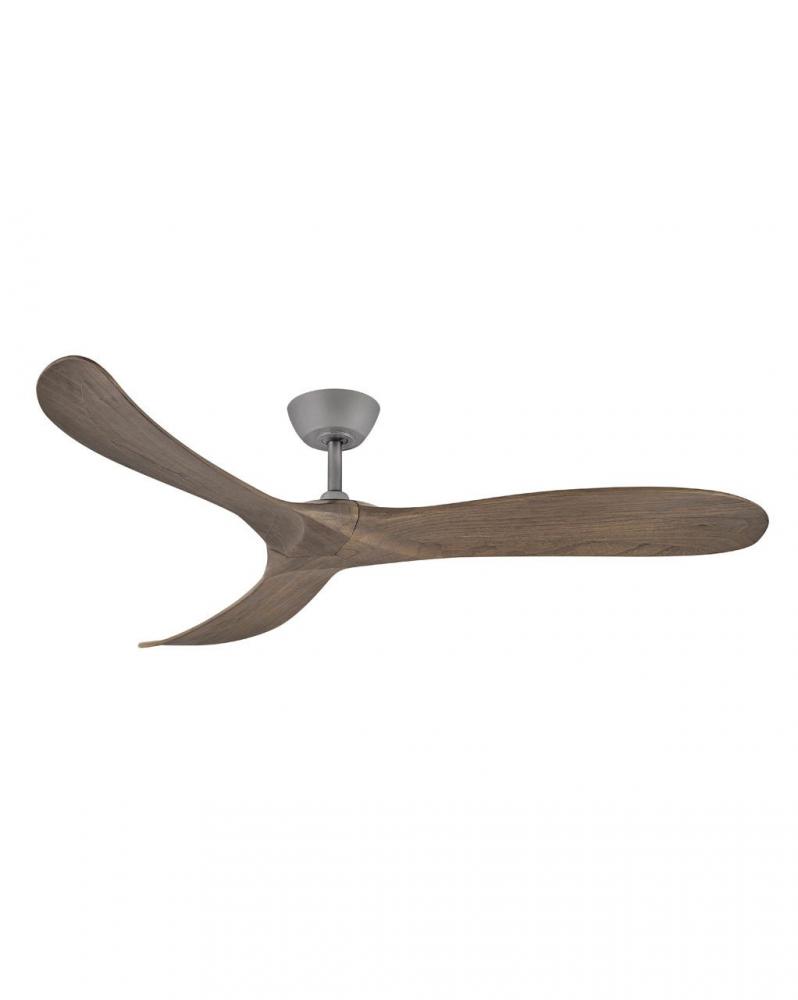

Swell is sophisticated and distinct in design without sacrificing its purpose. Available in a variety of finish colors and combinations, Swell sets the tone for all contemporary spaces. Swell is damp rated, making it perfect for both interior and outdoor settings. Operated by the HIRO control or WiFi compatible with the Hinkley app.

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

Gray , Miscellaneous

Style:

Modern

Option:

Title 24 , Damp Rated , Prop 65

Voltage:

100-120

Number of Blades:

3 Blades

Location Rating:

Damp Rated

Category:

Fan

Finish:

Graphite

Style:

Modern

Family:

Swell

Voltage:

120 V

Air Flow Efficiency:

8521

Amperage:

0.47

Blade Finish:

Driftwood

Blade Pitch:

Blade Span:

Blades Included:

Yes

Canopy:

6 Dia. x 2.5 D

Introduction Date:

01/01/2021

Light Kit Included:

Material:

Steel

Motor Size:

130 x 16

Motor Type:

Ship Carton Height:

11.42

Ship Carton Length:

34.06

Ship Carton Width:

12.6

Ship Weight:

18.74

Vendor Ship Method:

Parcel

Weight:

16.1

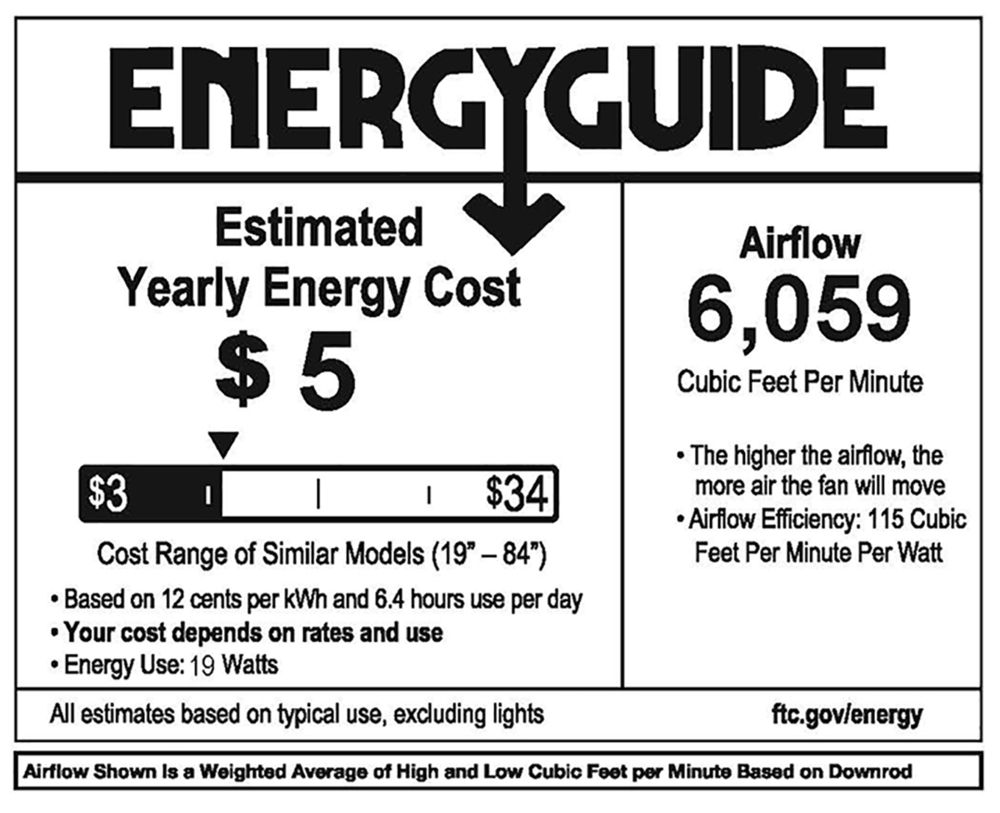

Airflow Avg:

6059

AMPS Avg:

0.28

Avg Energy Use:

Blade Material:

Wood

Blade Options Available:

Blade To Ceiling Height:

13.75

Blades Reversible:

Bulb Included:

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

Taiwan

Dual Mount:

Efficiency Avg:

325

Efficiency High:

279

Energy Cost Avg:

Energy Cost High:

Energy Use High:

30.5

Fan Control:

Yes

Flush Mount Fan:

Light Kit Adaptable:

Location Rating:

Damp Rated

Motor Fan Speed:

Number of Blades:

Operating Frequency:

Prop 65 Description:

CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

106

RPMS High:

155

Safety Rating:

ETL Approved, C-US Approved

Single Power Switch:

Yes

Slope:

Sloped Ceiling Adaptable:

Yes

Stand By Power:

0.2

Title 24:

WIFI Control Included:

Yes

WIFI Control Optional:

Additional Information:

Blades, controls, switches, capacitors and hardware carry a 1-year warranty
Bold silhouette with dramatic details creates a modern statement
Fan Control included, HIRO Control - 6 Speed Reversing
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
Motor carries a lifetime warranty
Powered by a highly efficient and quiet DC motor
Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
This item may be hung on a sloped ceiling
WiFi compatible with included fan control
