Product Overview

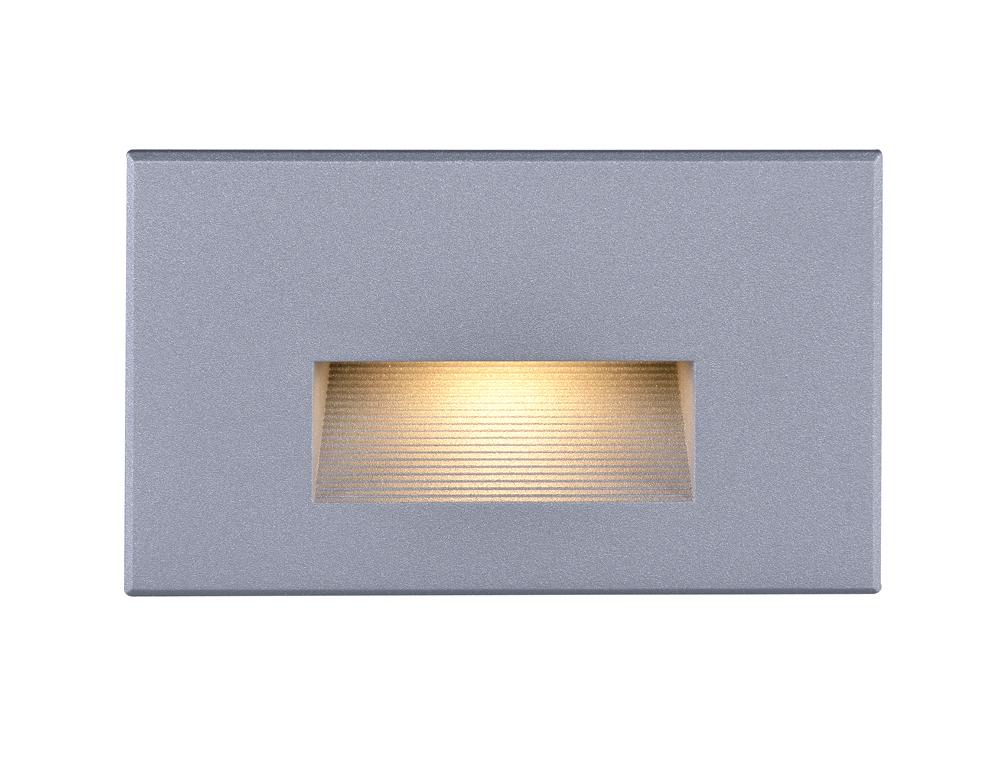

LED Horizontal Step Light; 5W; Gray Finish; 120V

Standard Information

Category:

Landscape Ltg.

Subcategory:

Step Lights

Finish:

Gray

Style:

Traditional

Option:

LED

Prop 65

Lumens:

450-800

Kelvin:

2501-3000

Refinement Options

Category:

Outdoor

Sub Category:

Step Light

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White

Dimmable:

Yes-Dimmable

Each Height:

2.2

Each Length:

5.2

Each Width:

3.2

Length:

1.63

Lumens:

407L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.042A

ANSI Base:

Integrated

BAA Compliant:

No

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

Taiwan

CRI:

80

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase

Each Cube:

0.0212

Each Quantity:

1

Efficacy:

81.40 LPW

FCC Compliant:

Yes

Feature 1:

Length: 1.63 inches, Width: 3.00 inches, Height: 5.00 inches

Feature 2:

Dimmable

Feature 3:

Gray Finish

Feature 4:

3000K Warm White Light

Feature 5:

407 lumens

Feature 6:

Wet location rated

Feature 7:

Easy installation

Feature 8:

FCC and RoHS compliant

Feature 9:

5 year limited warranty

Finish Family:

Gray

Incandescent Equivalent:

20W

Indoor Outdoor:

Outdoor

Installation Notes:

Not concrete rated; Requires a recessed switch box with a minimum interior box volume of 13 cubic inches.

JA8 Compliant:

No

Lens Material:

Glass

Long Description:

Satco's 65-411 5 watt horizontal step light is an easy to install fixture designed to light the way. The rugged construction of this gray fixture ensures that it is durable enough to withstand harsh weather conditions. Dimmable and space saving, this f

Material:

Die-Cast Aluminum

Mounting Procedure:

Horizontal Step Strip

Operating Frequency:

50/60Hz

Pack Type:

Box

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 5 watt horizontal step light is an easy to install fixture designed to light the way. The rugged construction of this gray fixture ensures that it is durable enough to withstand harsh weather conditions. Dimmable and space saving, this fixture

Safety Listing:

cULus

SDS class:

LED_Fixture

Short Description:

LED 5W HORIZONTAL STEP LIGHT

Temperature (CCT):

3000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Wattage Selectable:

No

Weight Lb.:

0.43
