Product Overview

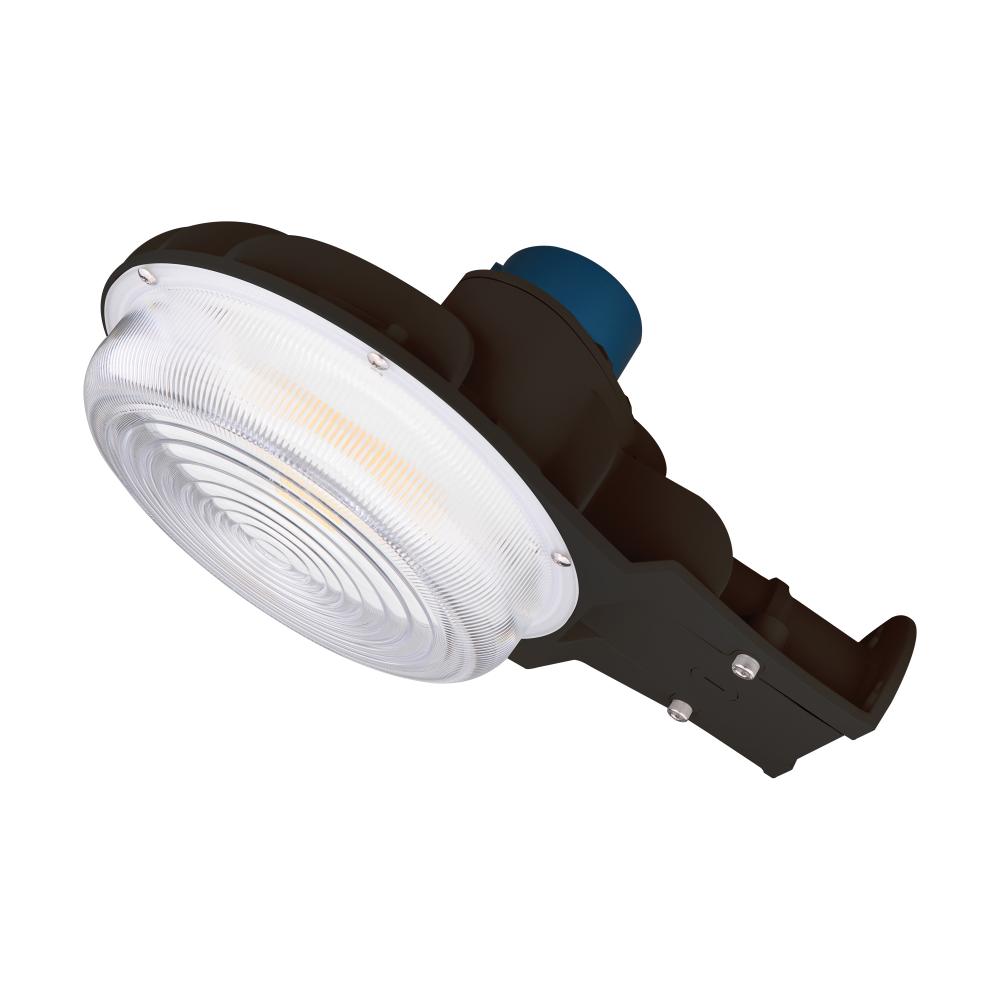

40 Watt LED Area Light with Photocell; CCT Selectable and Dimmable; Bronze Finish; 120-277 Volts; Ultra Bright Lumens

Standard Information

Category:

Landscape Ltg.

Subcategory:

Path Lights

Finish:

Bronze

Style:

Traditional

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Outdoor

Sub Category:

Area Light

Style:

Traditional

Additional Info:

Type V Lighting Distribution; Dusk to Dawn Lamp

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

7.09

Each Length:

16.54

Each Width:

11.81

Lumens:

5600L-6400L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.333-0.144A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

150x150

B_U_G_Rating:

B2-U3-G1

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

70

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

Outdoor Full-Cutoff Wall-Mounted Area Luminaires

Each Cube:

0.8015

Each Quantity:

1

Efficacy:

140.00/150.00/160.00 LPW

FCC Compliant:

Yes

Feature 1:

DLC Premium

Feature 2:

Included Photocell

Feature 3:

CCT Selectable

Feature 4:

Wall or Arm Mount Installations (Arm Mount Not Included)

Feature 5:

IP65 Rated

Feature 6:

Type V lighting distribution

Feature 7:

2KV Surge Protection

Finish Family:

Bronze

Flicker Free:

Yes

Has Driver:

Yes

HID Equiv:

150W

Incandescent Equivalent:

300W

Indoor Outdoor:

Outdoor

Installation Notes:

Suitable for 42-60mm pipe installation

IOT Enabled:

No

IP Rating:

IP65

JA8 Compliant:

No

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-685 40-watt CCT Selectable LED Area Light is engineered for performance inside and out! Built rugged using die cast aluminum and impact resistant lens these IP65 fixtures are all-weather tough. The new area light features our ColorQuick

Material:

Aluminum

Mounting Procedure:

Wall/Pipe Arm

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +50C (+122F)

Pack Type:

Box

Photocell:

Has Photocell

Power Factor:

>0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's 40-watt CCT Selectable LED Area Light is engineered for performance inside and out! Built rugged using die cast aluminum and impact resistant lens these IP65 fixtures are all-weather tough. The new area light features our ColorQuick select

Safety Listing:

cULus - Listed

SDS class:

LED_Fixture

Short Description:

40W LED AREA LIGHT W/PHOTOCELL

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Total Harmonic Distortion:

15%

Wattage Selectable:

No

Weight Lb.:

4.85
